The Silent Battle Inside Your Acrylic: What Happens When a Diode Laser Meets Two Different Plastics

The Silent Battle Inside Your Acrylic: What Happens When a Diode Laser Meets Two Different Plastics

Walk into any laser workshop and you'll hear the same advice: "Use cast acrylic, not extruded." But almost nobody explains why. If you've ever loaded what you thought was perfectly good acrylic into your machine and watched it produce frosted, uneven cuts or flames licking the edge, you've seen the result of a chemical war happening at the molecular level. Understanding that war is the difference between frustration and predictable, consistent production.

The story starts with how acrylic is made. Both cast and extruded acrylic share the same chemical name — polymethyl methacrylate (PMMA) — but their internal architecture couldn't be more different. Cast acrylic is formed by pouring liquid monomer into molds and letting it polymerize slowly, creating long, tangled polymer chains with no directional orientation. Extruded acrylic, by contrast, is forced through a die under heat and pressure, aligning its polymer chains in a single direction like logs floating down a river. That alignment is where the trouble begins.

The Molecular Split: Why One Cuts Clean and the Other Doesn't

When a diode laser beam hits cast acrylic, the random, tangled polymer matrix absorbs energy and vaporizes evenly in all directions. The result is a smooth, flame-polished edge requiring almost no post-processing. But when that same beam hits extruded acrylic, the aligned polymer chains conduct heat preferentially along their orientation. This causes stress cracking and the milky-white residue that plagues so many projects. The material literally tears itself apart because its molecules are lined up like dominoes — a heat wave hits one, and they all fall.

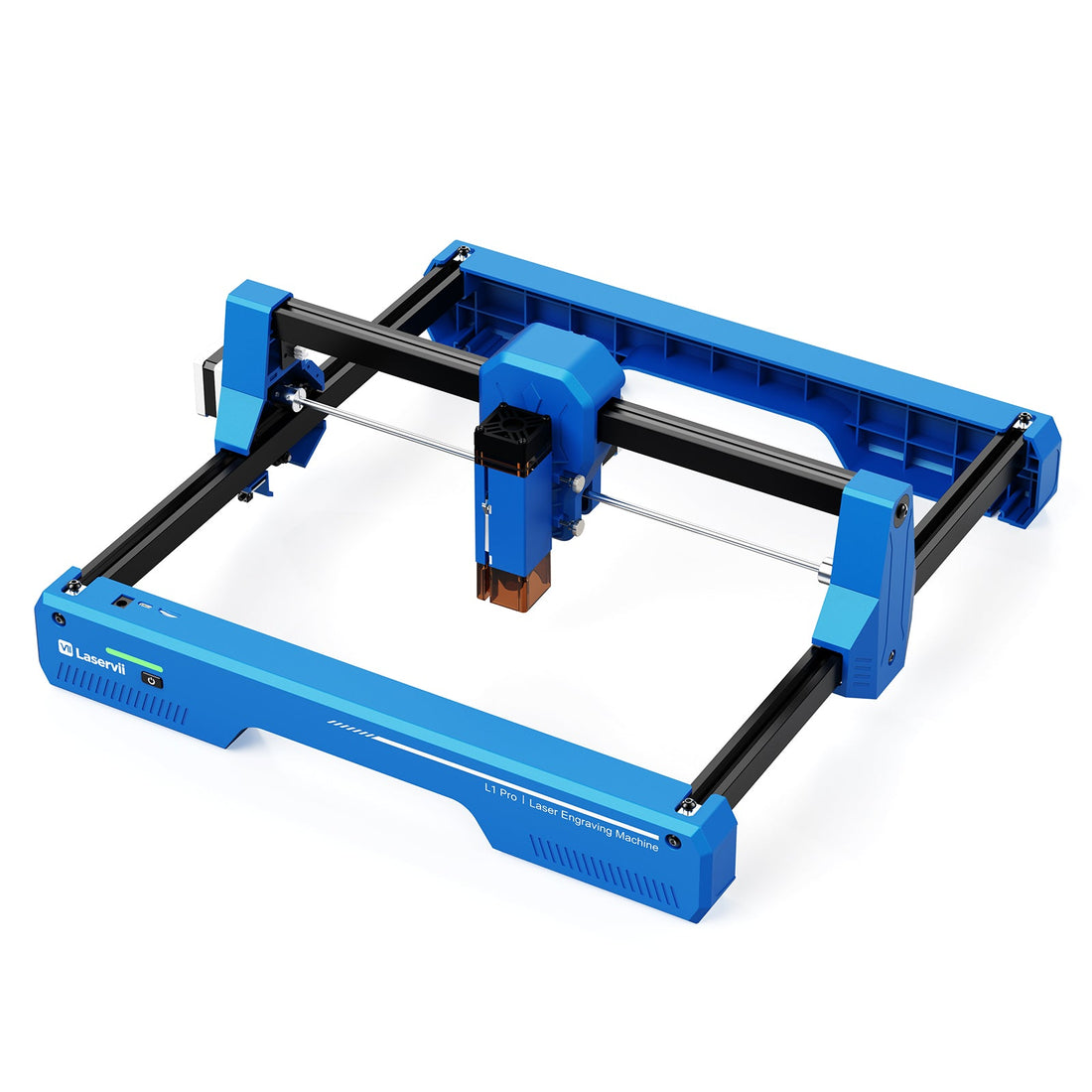

This isn't a quality issue with your machine. A diode laser engraver like the L1 Pro can produce exceptional results on both materials — provided you know which settings to use. Extruded acrylic requires lower power and faster passes to minimize heat buildup, while cast acrylic rewards slower, deeper passes that take advantage of its even vaporization behavior. For a technical overview of acrylic laser behavior, this cast vs. extruded acrylic comparison from Clear Polymers offers useful background on material properties.

Beyond Clean Cuts: The Visual Payoff

Cast acrylic not only cuts cleaner — it produces a flame-polished edge that customers perceive as higher quality. That glossy, transparent finish on the cut face separates mass-produced looking items from premium products. If you're selling laser-cut jewelry displays, signage, or wedding decorations, that visual difference can justify a 30-50% price premium over competitors who use extruded material and accept frosting as normal. Professional sign makers exclusively use cast acrylic despite it costing roughly twice as much per sheet.

Why Settings Won't Cross Over

One common mistake is assuming acrylic is acrylic. Switching from extruded to cast without adjusting parameters guarantees failure. Cast acrylic handles 15-20% slower feed rates because its heat distribution prevents localized burning. Extruded needs 10-15% less power to avoid stress cracking from aligned polymer chain expansion. Proper ventilation matters more for extruded acrylic, which produces more vaporized monomer gas. Research on acrylic laser cutting fumes and respiratory health confirms that different grades of PMMA release varying levels of methyl methacrylate vapor during thermal processing.

The Edge That Sells

The flame-polished edge from cast acrylic isn't just aesthetic — it's functionally superior for trophies, display cases, and retail signage. On an enclosed laser engraver like the M1s, the controlled environment maintains consistent cut quality across both material types since ambient airflow — a surprisingly large factor in acrylic engraving — is eliminated.

Some fabricators use the flame-polishing phenomenon to eliminate secondary finishing entirely. Instead of sanding and torching edges by hand, they optimize laser parameters to achieve the polished look directly from the cut. This saves 10-15 minutes per piece — time that adds up fast when running batches of 50 or 100 units for seasonal markets or wholesale orders.

The Environmental Factor

Cast acrylic polymerizes more completely during manufacturing, containing fewer residual monomer molecules than extruded acrylic. When you cut extruded acrylic, those free monomers are released as gas more readily, contributing to the sharp smell and potentially harmful fumes. Cast acrylic produces fewer volatile organic compounds during cutting — a consideration for workshops without industrial ventilation. The Laser Institute of America emphasizes proper ventilation as a critical safety factor in laser operations. Material choice directly affects how much ventilation you need.

Some manufacturers now produce "laser-grade" extruded acrylic formulated with fewer residual monomers. If you need the impact resistance of extruded for a project, look for material labeled as such. Otherwise, cast remains the preferred choice for clean, predictable results.

Putting Knowledge to Work

The single smartest thing you can do as a new acrylic cutter is buy one sheet each of high-quality cast and extruded acrylic, run a parameter matrix, and document the results. Mark each test piece with power, speed, and pass count. You'll discover that even within cast acrylic, different manufacturers use slightly different polymerization processes that affect laser behavior. For additional reading on PMMA material science, the AZO Nano overview of PMMA properties covers the chemistry behind its thermal response.

Use extruded for prototypes and temporary signage. Reserve cast for client-facing pieces where that glass-like cut edge becomes part of the sale. The material cost difference per piece is small — but the perceived value difference is enormous. Once you see acrylic through the lens of its molecular structure, every cut becomes predictable.

Ready to put this knowledge into practice? The L1 Pro from Laservii handles both material types with precision, and its interchangeable lens system gives you the flexibility to fine-tune focal spot size for different acrylic thicknesses — from thin display panels to thick architectural models.
