How to Cut Acrylic with a Diode Laser Engraver: Complete Guide for Clean, Polished Edges

Cutting acrylic cleanly with a diode laser is one of the most satisfying things you can do with a desktop laser engraver — the result is a crystal-clear, polished edge that looks professionally CNC-machined. But too many beginners get frustrated because their cuts come out brown, melted, or rough-edged. That's almost always a settings and technique problem, not a machine problem.

This guide covers everything you need to cut acrylic cleanly: the right settings, the critical role of air assist, which acrylic types work best, and the most common mistakes that ruin cut quality.

Acrylic Types: Cast vs. Extruded — It Matters

Before you touch your laser, understand that not all acrylic is the same. The two main types behave very differently under a laser beam.

Cast acrylic is made by pouring liquid plastic into a mold. When lasered, it produces a frosted, white-ish mark where the beam hits. For cutting, cast acrylic gives a slightly matte, satin finish on the edges.

Extruded acrylic is pushed through a die, making it more uniform and typically cheaper. For laser cutting, extruded acrylic produces a clearer, more transparent edge — but it's more prone to melting and requires more precise airflow to avoid brown scorching.

Why Air Assist Is Non-Negotiable for Acrylic

If you only take one thing from this guide, let it be this: you must use air assist when cutting acrylic.

Without air assist, the laser beam creates smoke and vapor that re-deposits onto the surrounding surface, causing pitting, discoloration, and rough edges. An air assist kit — like the Laservii P2 Air Assist at 25L/min — directs a focused stream of compressed air along the laser beam path, keeping the lens clean, blowing smoke away, and preventing flaming and discoloration.

Settings for Cutting Acrylic

Cutting 3mm Extruded Acrylic

• Speed: 300–400 mm/min
• Power: 80–100%
• Passes: 1 pass with air assist running
• Air assist: 20–25L/min

Cutting 6mm Extruded Acrylic

• Speed: 120–200 mm/min
• Power: 80–100%
• Passes: 2 passes is safer than pushing for 1 pass
• Air assist: 25L/min minimum

Settings for Engraving Acrylic

• Speed: 400–800 mm/min
• Power: 30–60%
• DPI: 300–500
• Passes: 1 pass

The Focus Problem: Why Your Cuts Are Inconsistent

The single most common cause of poor acrylic cutting results is incorrect focus distance. Most desktop diode lasers focus at about 50mm from the laser housing. Running at 48mm instead of 50mm can mean the beam is spread over twice the area — cutting power drops by 50% or more. Always do a single-line focus test on a scrap piece before cutting.

Common Mistakes and How to Fix Them

Brown/Black Edges Instead of Clear

Cause: No air assist, or air assist pressure too low. Fix: Increase air assist flow or ensure the nozzle is positioned within 3–5mm of the material surface.

Pitted, Rough Cut Surface

Cause: Lens contamination, inconsistent air pressure, or focus off. Fix: Clean the lens, check air assist flow, re-focus.

Incomplete Cut on 6mm+ Acrylic

Cause: Too fast a speed or insufficient power. Fix: Reduce speed to 100–150 mm/min for thick cuts, or use 2 passes.

Acrylic Melting Around the Cut Line

Cause: Power too high combined with slow speed. Fix: Increase speed and reduce power to reduce total heat input.

Recommended Equipment

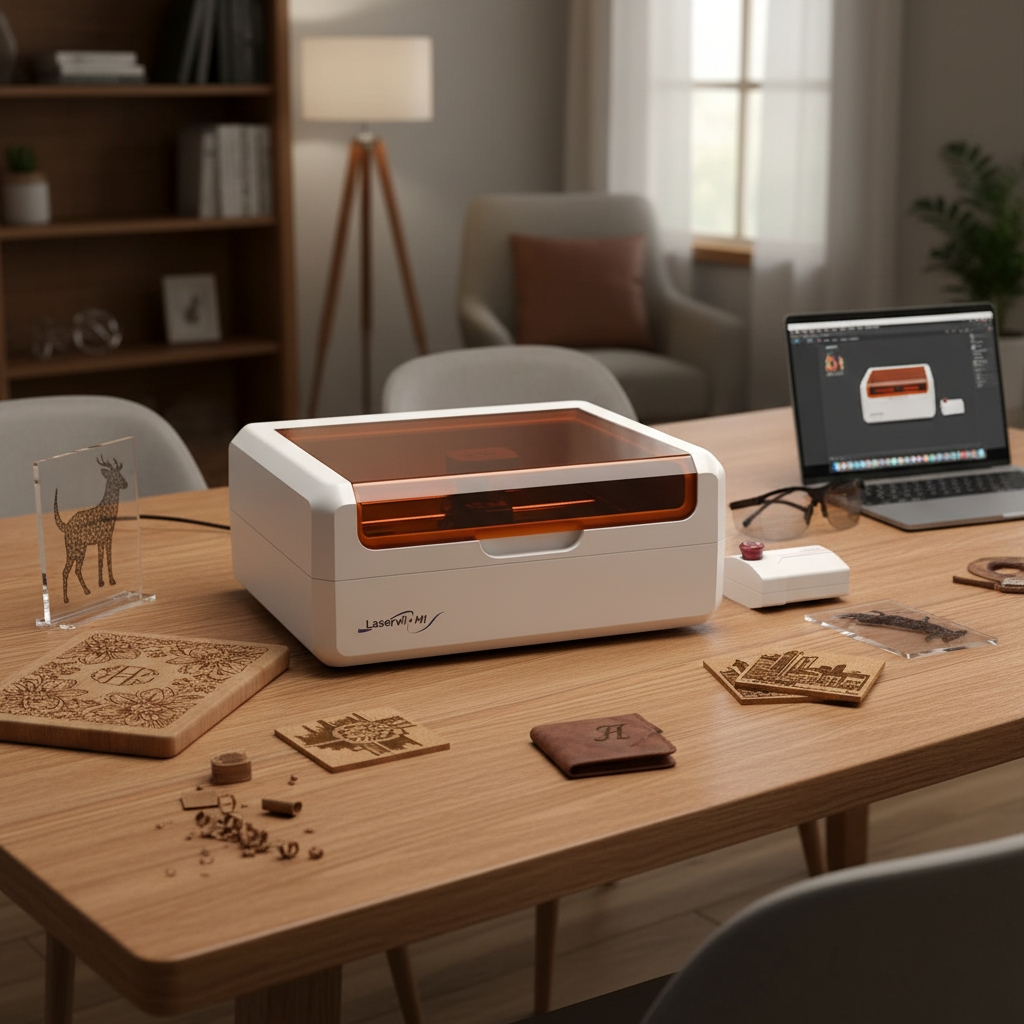

The Laservii L1 Pro at 12W handles 3mm extruded acrylic cleanly in a single pass at 300 mm/min with air assist. For 6mm acrylic, budget for 2 passes. For thicker cuts or batch production, the enclosed Laservii L1 Plus with 24W delivers more consistent, faster results.

For air assist, the Laservii P2 Air Assist 25L/min is designed to mount directly to the L1 series. Set it up before you cut — never try to cut acrylic without it.
